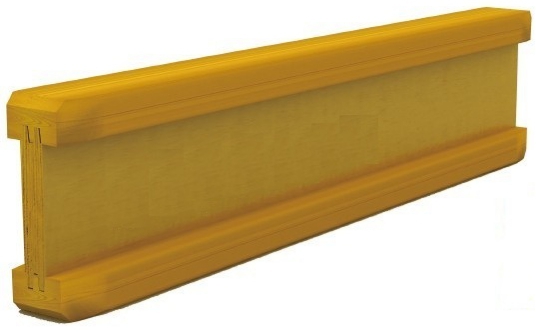

H20 Timber Beam

Short Description:

At present, we have a large-scale timber beam workshop and a first-class production line with daily output of over 3000m.


Product Detail

Product Details

Timber beam H20 is an important part of formwork system. It has a very wide range of application in Construction,Metro, Tunnel, Nuclear Power Station etc.as one of the basic components in more than a half  formwork system, maintains the property to be lighter, stronger, safer and more durable in order to achieve better performance for site jobs. According to the requirement, standard holes can be drilled in the two ends of timber beam. We can lengthen the timber beam by end-to-end join. We can also produce  timer beams length with customer demand.

Specification

Wood material Birch

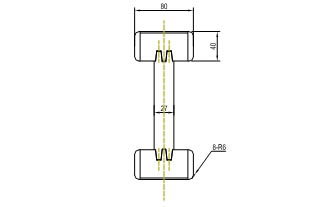

Width 200mm + Flange:80mm
Weight 4.80kg/metr
Length available 1.00/1.50/2.00/2.50/3.00/3.50/4.00/4.50/5.00/5.50/6.00/12.00meter
Surface finishing Waterproof yellow painting
Packing Different length loaded differently

Advantages

1. Light weight and strong rigidity.

2. Stable in shape due to the highly compressed panels.

3. Water resistant and anti-corrosion treatment allows the beam more durable in site use.

4. Standard size can match well with most Euro formwork systems, universally used all over the world.

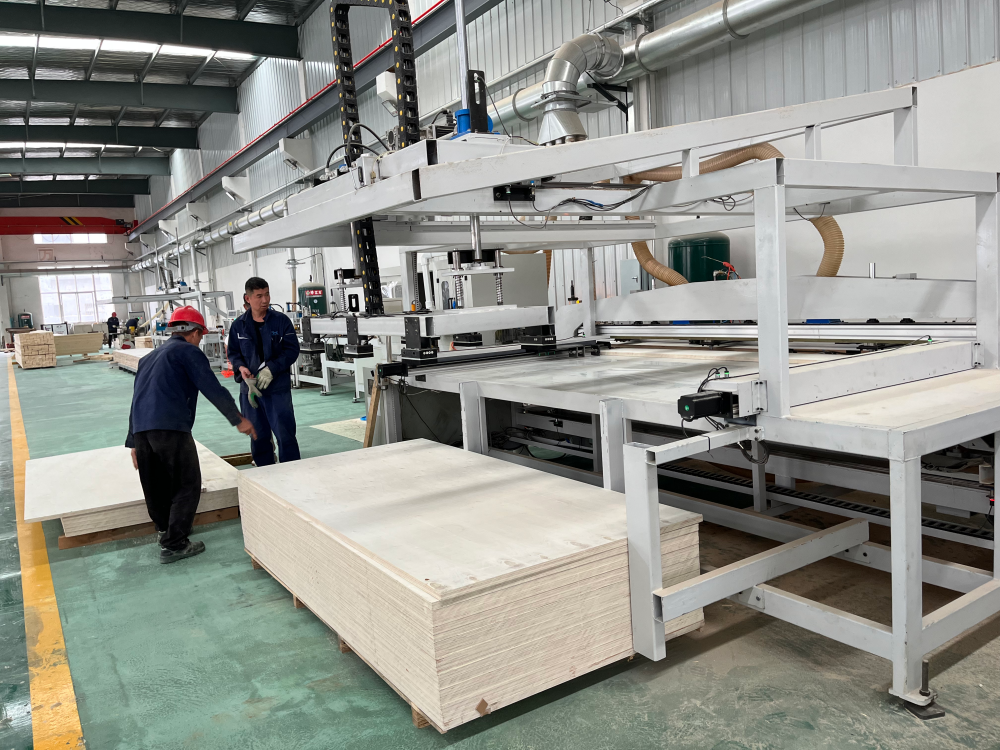

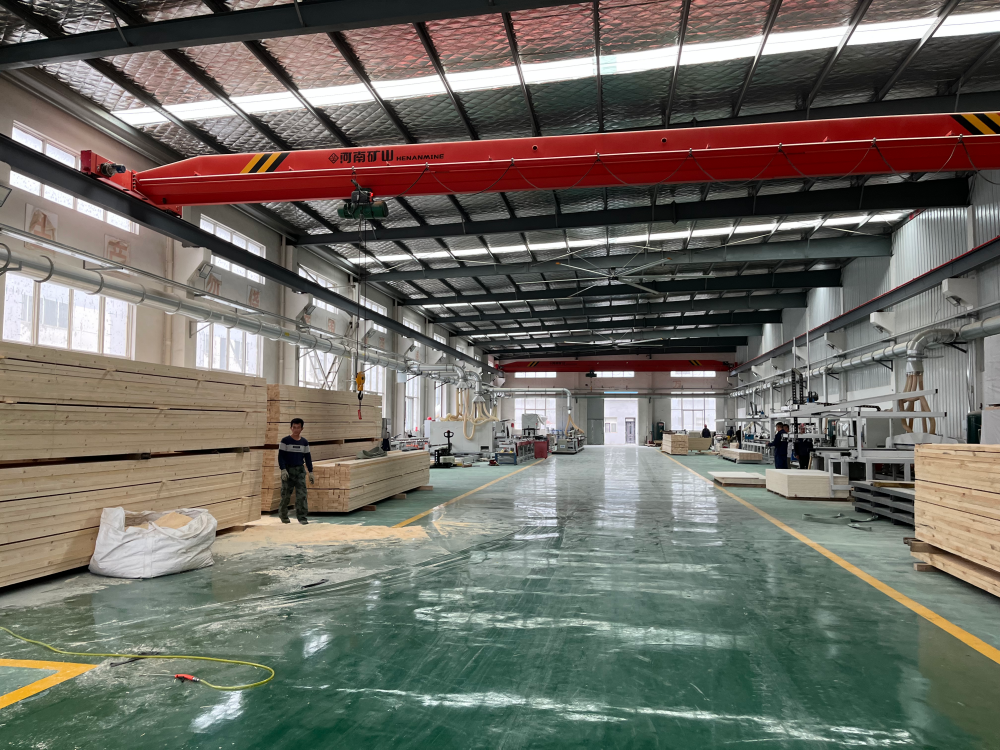

At present, we have a large-scale timber beam workshop and a first-class production line with daily output of over 3000m

Timber beam product to be delivered

1
2
1 (2)

● High quality

Raw materials imported

● Super performance

Fully automatic finger jointing

● High standard

Manufactured on Production lines

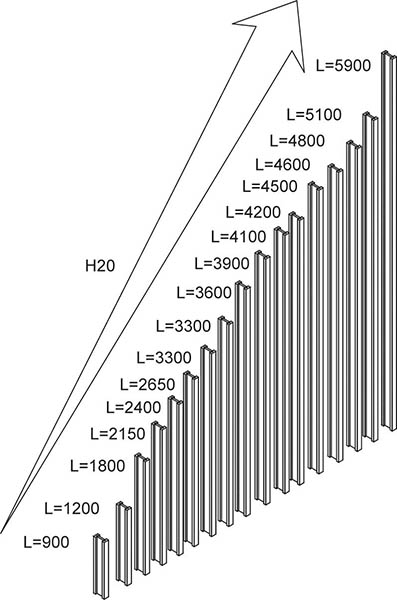

Specifications of H20 timber beam

44

L(mm)

WT(kg)

900

4.54

1200

6.05

1800

9.08

2150

10.85

2400

12.10

2650

13.37

2900

14.62

3300

16.63

3600

18.14

3900

19.66

4100

20.68

4200

21.31

4600

23.20

4800

24.20

5500

27.73

6000

30.26

7000

35.30

11 11 (2)
Surface:Yellow water-proof painting Flange:Spruce Web:Poplar plywood

Parameters of timber beams

Permitted bending moment Permitted shearing force Average weight

5KN*m

11KN

4.8-5.2kg/m

Application

1 (2)
1 (1)
1 (3)
