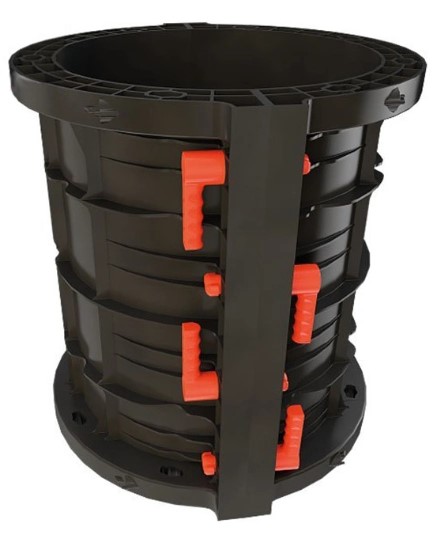

News Flash Plastic Round Formwork

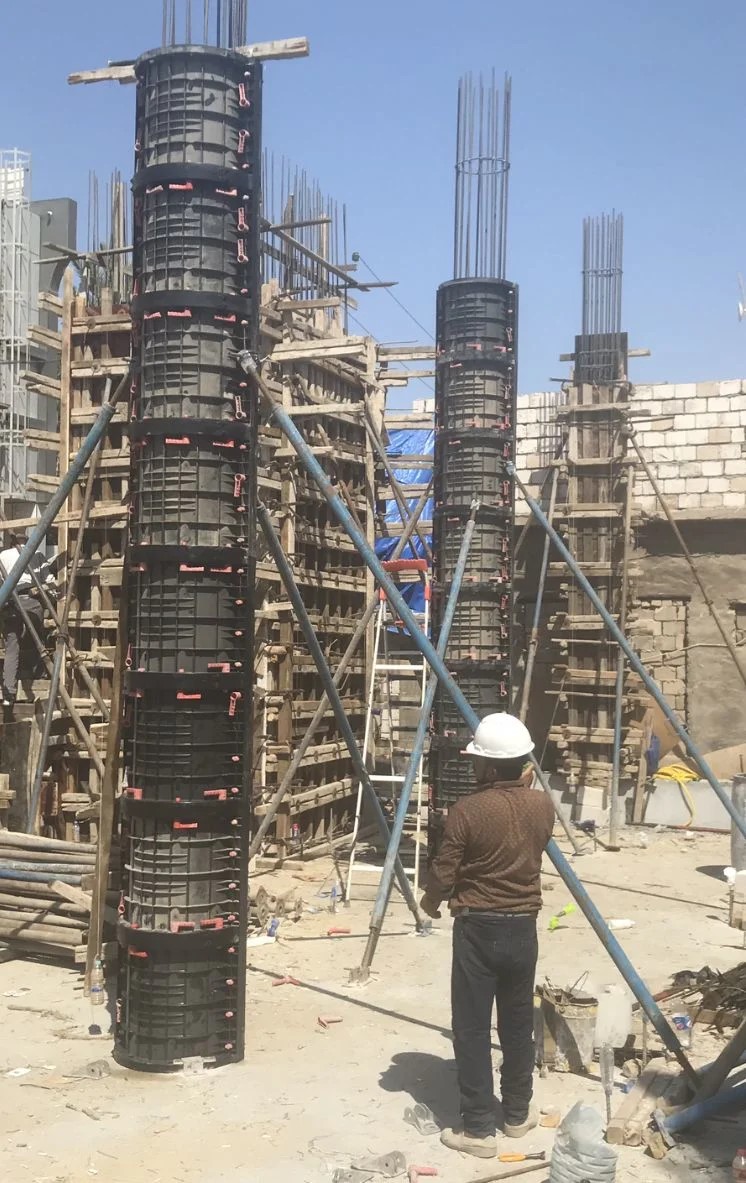

In particular, the plastic formworks offered by LIANGGONG are suitable for concrete columns, pillars, walls and foundations directly onsite. Their modularity allows to satisfy every construction and planning needs; columns and pillars of different shapes and dimensions, walls and foundations of different thickness and height.

12

13

Characteristics

1. Long lifespan& Cost effective – Plastic formwork can be reused over 80 times, while plywood can only be reused 3 to 5 times. Therefore the plastic formwork is more cost effective.

2. Waterproof – As the nature of plastic material. It’s imputrescible and rustless,especially suitable for underground and watery circumstance.

3. Interlocking Design – No release agent needed, good effect of demolding.

4. Easy deassembly — The template will be separated easily from concrete .

5. Simple Installation – Light weight and safe to handle, easy cleaning and very robust.

6. High Quality – Abrasion resistance, excellent mechanical property, best impermeability.

14

Standard Specifications

Name

ABS Plastic Panel Formwork For Column Concrete



Height

750mm



Diameter

300mm,350mm,400mm,450mm



Application

Hotel, department



Design Style

Modern



Product name

Formwork Clamp Plastic Concrete Formwork For Plastic Building



Feature

Adjustable Size



Package

Steel Pallet



Certification

SGS/ISO9001….



Weight

13kg/sqm



MOQ

100 PCS



Life Time

Over 80 times



Delivery Time

7-30days

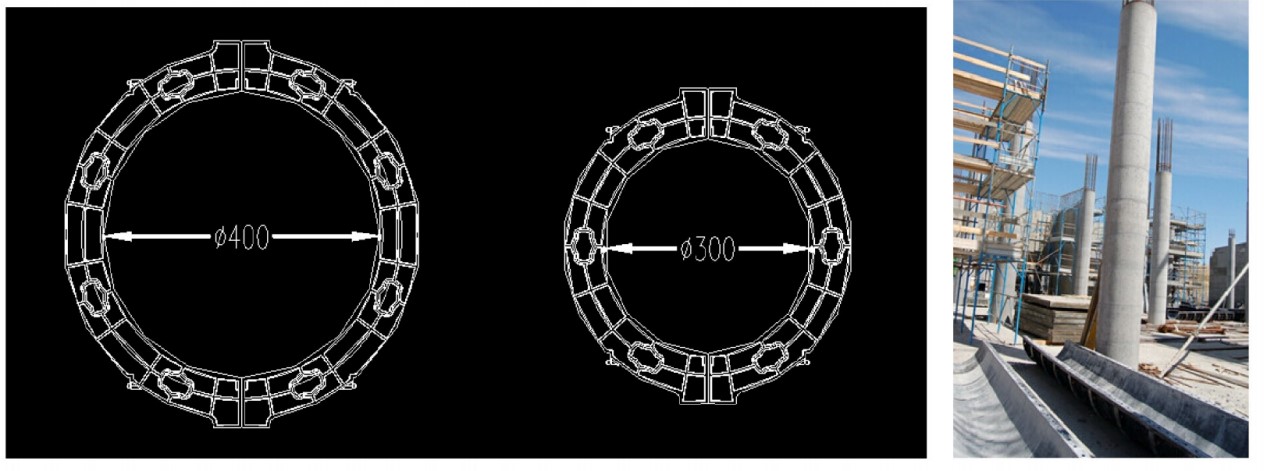

Round Plastic formwork

No.

Size

Weight (kg)

Material

1

D300*750

5.12

ABS

2

D350*750

5.62

ABS

3

D400*750

6.43

ABS

4

D450*750

6.28

ABS

15
